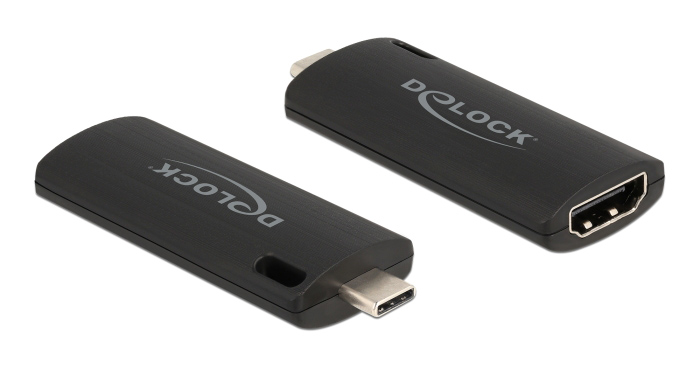

DELOCK video capture 88309, HDMI/USB-C σύνδεση, 4K/30Hz, μαύρο

DELOCK video capture 88309, HDMI/USB-C σύνδεση, 4K/30Hz, μαύρο

Αυτό το HDMI video capture stick της Delock μπορεί να χρησιμοποιηθεί για μεταφορά σημάτων βίντεο, για παράδειγμα από μια ψηφιακή κάμερα σε έναν υπολογιστή.
It allows recording from HDMI sources with a maximum resolution of 4K at 30Hz and the recording is compressed up to 1080p at 30Hz.

-video class standard (USB Video Class-UVC)
-template for USB Audio UAC
- output support for YUY2, MJPG
- plug & play

Specifications
Plug 1: USB Type-C 2.0 Type-A male
Plug 2: HDMI female
Max Resolution (Input): 3840 x 2160 @ 30 Hz
Maximum resolution (recording): 1920 x 1080 @ 30 Hz
Image frame rate:
-1920 x 1080 MJPEG: 30 fps, YUY2: 5 fps
-1360 x 768 MJPEG: 30 fps, YUY2: 8 fps
-1280 x 720 MJPEG: 60 fps, YUY2: 10 fps
-1600 x 1200 MJPEG: 30 fps, YUY2: 5 fps
-1280 x 960 MJPEG: 50 fps, YUY2: 8 fps
-800 x 600 MJPEG: 60 fps, YUY2: 20 fps
-640 x 480 MJPEG: 60 fps, YUY2: 30 fps
Audio recording type: 16-bit stereo 48 kHz / 16-bit mono 96 kHz
Dimensions (LxWxH): Approx. 66 x 24 x 10 mm
Black color
