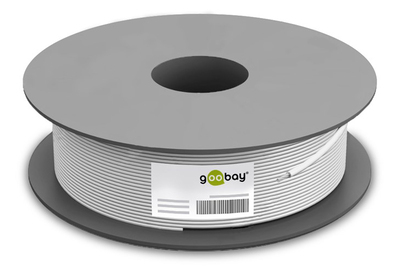

GOOBAY antenna cable 27518, 120dB, 75Ω, CCS, 100m, white

GOOBAY antenna cable 27518, 120dB, 75Ω, CCS, 100m, white

Goobay's cables are manufactured from quality materials, with the highest technical specifications, offering reliable, high-performance operation with time resistance.

-For digital SAT and CATV systems
-Digital-ready for HDTV using DVB-S / S2, DVB-T / T2, DVB-C / C2
-Quadruple signal shield for adequate protection over long distances

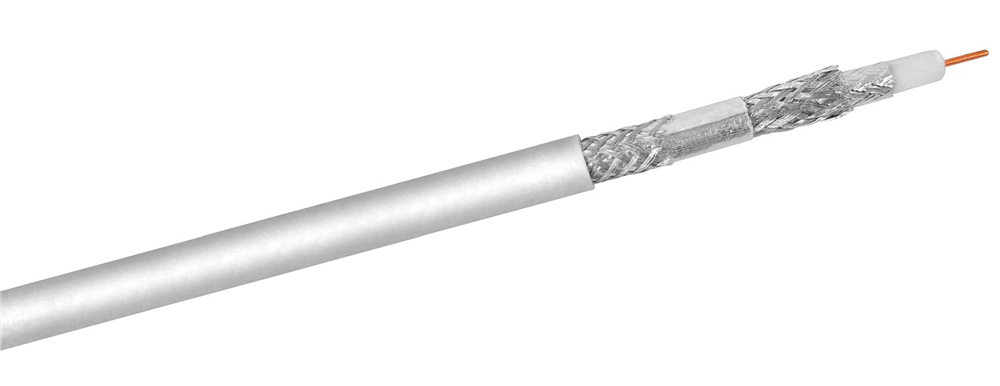

Specifications
Cable type: Round cable
Inner conductor material: CCS
Meter scaling: Yes
Number of shields: x4
Type 1, shielding: Foil (aluminum)
Type 2, shielding: Braid (aluminum) 64x
Type 3, shielding: Foil (aluminium)
Type 4, shielding: Braid (aluminium) 64x
Cable sheath diameter (approx.): 6.9mm
Dielectric diameter: 4.6
Inner conductor, core diameter: 1.02
Shielding efficiency: 120dB
Impedance: 75Ω
Fire class (CPR): Eca
Cable length: 100m
Color: White
