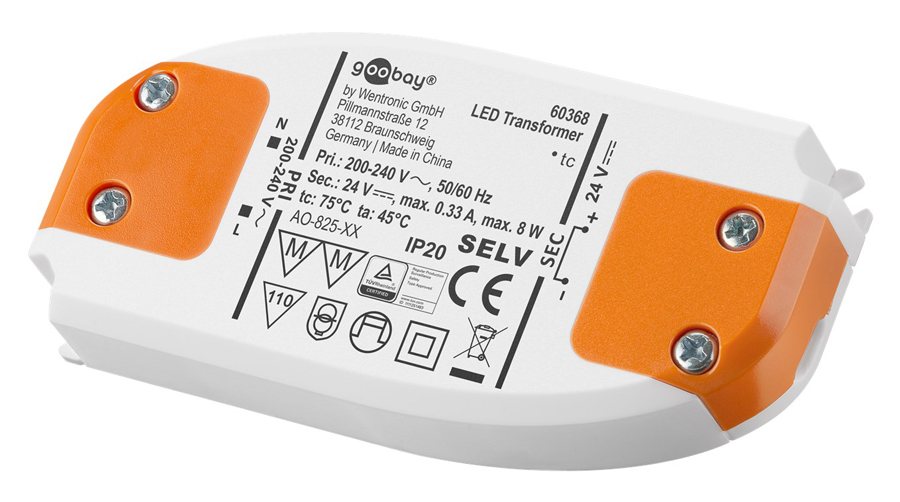

GOOBAY LED transformer 60368, 24V, 8W, IP20

GOOBAY LED transformer 60368, 24V, 8W, IP20

Goobay 12V DC transformer for powering LEDs with a total load of up to 8W.

-overvoltage and short circuit protection
-easy connection via integrated terminals
- suitable for LED with electronic ballast and parallel circuits
-flat design and low heat generation

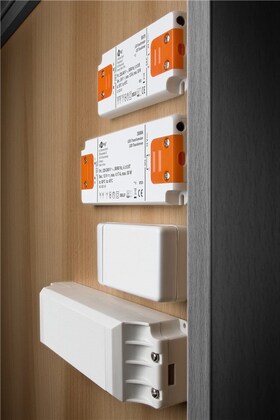

- suitable for mounting on furniture

Specifications
Max. Performance: 8W
Minimum load: 0
Dimmability: Not dimmable
No-load power consumption: 0.5 W
Input, type: Screw clamp
Number of inputs: 2 pcs.
Input Cross Section: 0.75 mm²
Output, type: Screw clamp
Output, voltage (DC): 24 V (DC)
Output, max. amperage: 0.33 A
Output Cross Section: 0.75 mm²
Input, Voltage Range: 200 – 240 (AC) V
Number of outputs: 2 ports
Protection class: IP20
Operating temperature: -20°C to 45°C
Dimensions (LxWxH): 94.5 x 46.2 x 19.5 mm
Color: White-orange
