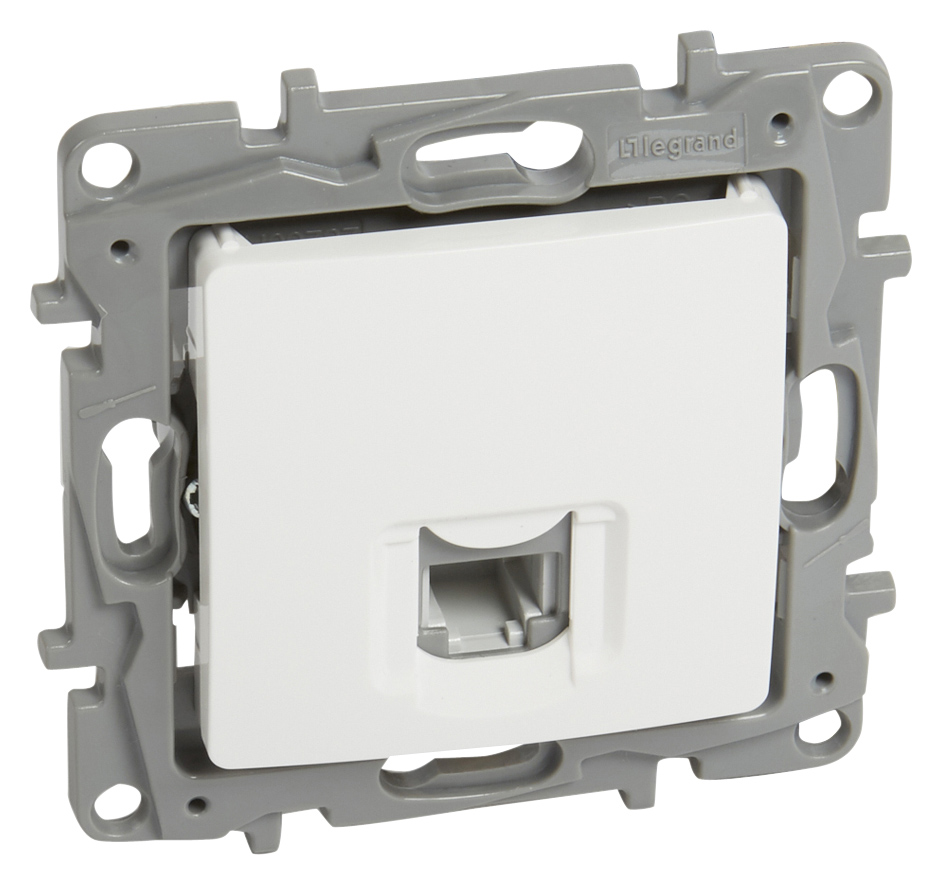

LEGRAND socket RJ11 764569, white

LEGRAND socket RJ11 764569, white

RJ11 socket of the NILOE series, a functional and complete series with a timeless design. Its design gives it a light and modern look, in white color to suit any style. The design of their products and packaging is ecological.

-RJ11 telephone socket
- Resistant to UV radiation
- IP20 protection

Specifications
Protection against solid bodies and liquids: IP20
Protection against impacts: IK 04
Accepts the following cable connectors: RJ 11 (4 contacts)
Double color code EIA – TIA 568 A and B on terminals: UTP 8 contacts
Conductors supported, single-wire: 0.5 to 0.65 mm, AWG 22 to 26
Conductors supported, multiple-wire: AWG 26
Conductors supported, polyethylene conductor insulation: max. O with insulation 1.58 mm
Range: RJ11 socket
Module size: 75.8 x 75.8mm
Dimensions: 75.8 x 75.8 x 30.8mm
Material: ABS/Polycarbonate
Color: White
