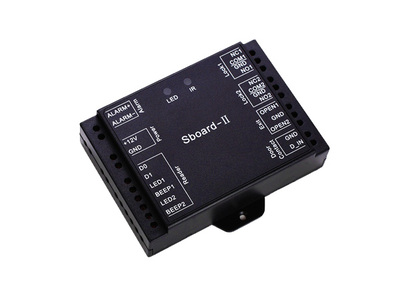

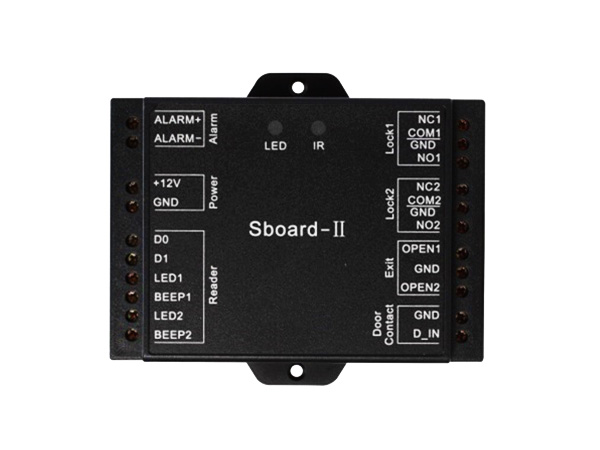

SECUKEY Mini controller with two doors SCK-SBOARD-II

SECUKEY SBOARD-II Two port mini controller

The Sboard-II is a dual relay controller for 2 doors that can be connected to any Wiegand reader.

Specifications:
User Capacity: 2,100
Zone 1: 2,000
Zone 2: 100
Operating Voltage: 9~24V DC
Idle Current: <30mA
Idle Current (With Wifi): <100Ma
Relay: –
Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
Lock Output Load: 10 Amp Maximum
Wiegand Interface: –
Input: Wiegand 26~37 bits
Output: Wiegand 26~37 bits (for user transfer)
Environment: Indoor
Operating Temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
Operating Humidity: 0~90%RH
Physical: ABS Shell
