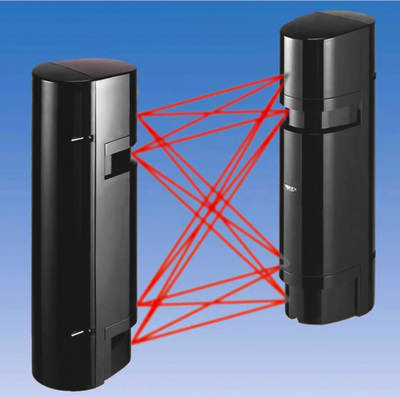

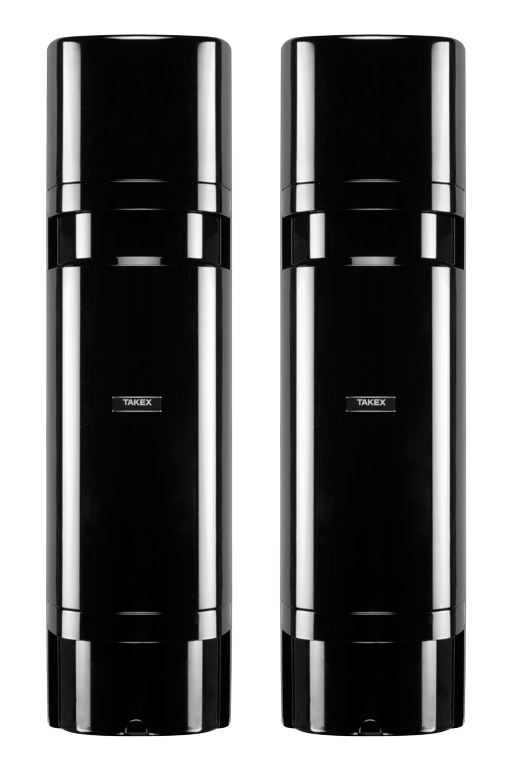

TAKEX 4-beam photoelectric detector, 100m range.

-4 high power synchronized photocells
-12-30VDC supply without polarity.
-lock automatic GAIN control
-4 frequency options
-2 levels of photocell transmission
- IP55 waterproofing

Specifications
Detection system: Near infrared beam interruption system
Infrared beam: Double modulation pulsed beams by LED
Protection distance: 100m or less
Response time: 50msec
Power supply: 12V to 30V DC (non-polarity)
Current consumption: 70mA or less at protection (max 105mA or less)
Alarm output:
Dry contact relay: NO or NC (selectable)
Reset: Interruption time+ off-de4lay (approx. 1.5sec)
Contact capacity: 30V (AC/DC) 1A or less
Environmental output
Dry contact relay: NO or NC (selectable)
Contact operation: Output when environmental conditions worsen
Contact capacity: 30V (AC/DC) 0.5A or less
Tamper output:
Dry contact relay: NC
Contact operation: Output when receiver cover is detached
Contact capacity: 30V (AC/DC) 0.1A or less
Alarm LED: red LED (receiver) lights when an alarm is initiated
Sensitivity attenuation LED: red LED (receiver) lights when beam reception is attenuated
Beam adjustment: Horizontal: +-90°, Vertical: +-10°
Temperature range: -35°C to +66°C
Mounting: Outdoor IP55

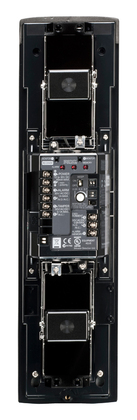

Wiring: terminals
Weight: Transmitter: 1200g, Receiver: 1300g

Package Contents
1x Transmitter
1x Receiver
8x 4×30 screws
8x 4×20 screws
base for support on a pole
