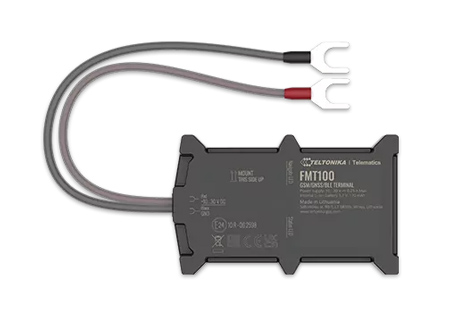

TELTONIKA GPS Car Tracker FMT1001A9S01, GSM / GPRS / GNSS, Bluetooth

TELTONIKA GPS Car Tracker FMT1001A9S01, GSM / GPRS / GNSS, Bluetooth

Caution:
For its operation, the use of a SIM card is required

1 year free hosting for online tracking!

The device comes with 1 year of free hosting for online tracking.
To register for the service, follow the procedure described in the instructions of the link below
https://www.data-media.gr/files/teltonika.pdf

Mobile App
Download the app from the link below to monitor your device from your smartphone as well.
https://www.data-media.gr/files/gs.apk

Το FMT1001A9S01 είναι ένα μοντέλο έξυπνης τεχνολογίας και μικρό σε μέγεθος. Υποστηρίζει σύνδεση Bluetooth, έχει εσωτερική κεραία GNSS μεγάλης εμβέλειας και επίσης διαθέτει εσωτερική εφεδρική μπαταρία. Είναι εξοπλισμένο με ειδικό clamp σύνδεσμο για γρήγορη σύνδεση του καλωδίου τροφοδοσίας με την μπαταρία του αυτοκινήτου. Διαθέτει στερεά αδιάβροχη θήκη και ενσωματωμένο αισθητήρα επιταχυνσιόμετρου με εξαιρετικά ακριβή λειτουργία εντοπισμού πρόσκρουσης, γεγονός που καθιστά αυτή τη συσκευή απόλυτα κατάλληλη για λύσεις ασφαλιστικής αγοράς.

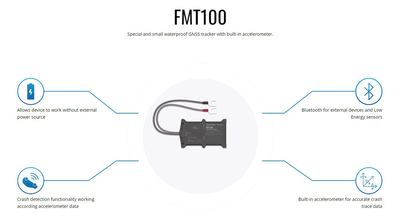

-Bluetooth for external devices and low energy consumption sensors
-Possibility of operating the device without an external electrical source
-Built-in accelerometer for accurate tracking data
-Impact detection function according to accelerometer data

Specifications
Technology: GSM/GPRS/GNSS/BLUETOOTH
GNSSL: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channels
Tracking sensitivity: -165 dBM
Accuracy: < 2.5m CEP
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s
Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)
Input voltage range: 10 – 30 V DC with overvoltage protection
Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption: At 12V < 1.47 mA (Ultra Deep Sleep), At 12V < 3.21 mA (Deep Sleep), At 12V < 3.75 mA (Online Sleep), At 12V < 5.48 mA (GPS Sleep), At 12V < 24.41 mA ( nominal)
Bluetooth specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
GNSS antenna: Internal High Gain
Cellular antenna: Internal GSM High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory
Ingress Protection Rating: IP65
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS: Configuration, Events, Debug
GPRS commands: Configuration, Debug
Time Synchronization: GPS, NITZ, NTP
Fuel monitoring: OBDII dongle
Ignition detection: Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Dimensions: 92.5 x 57.6 x 14mm (L x W x H)
Weight: 63g

Package Contents
GPS Tracker
USB cable
