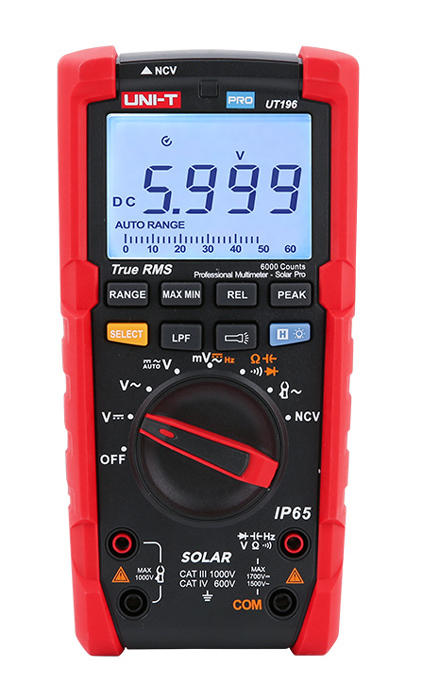

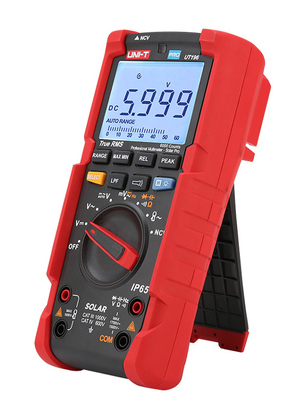

UNI-T Digital Multimeter Solar Pro UT196, 1700V DC/1500V AC, True RMS

UNI-T Digital Multimeter Solar Pro UT196, 1700V DC/1500V AC, True RMS

The Solar Pro UT196 True RMS Digital Multimeter is an ideal tool for maintaining solar power systems. This rugged multimeter is designed for technicians who work outdoors. The UT196 can measure up to 1700V DC and 1500V AC voltage, and 3000A AC current using a clamp meter. It has IP65 protection and can withstand a drop of 2 meters.

-True RMS
-Measure up to 1700V DC and 1500V AC for high voltage applications eg solar array, wind
- IP65 protection
-CAT III 1000V, CAT IV 600V
-Analog bar
-Frequency response: 45Hz~1kHz
- Low-pass filter function
-Low impedance mode
-Built-in flashlight, bright backlight and visual alarm

Specifications
DC voltage(V): 1700V, +/-(0.2%+5)
AC voltage(V): 1500V, +/-(0.8%+3)
Frequency (Hz): 1MHz, +/-(0.08%+4)
Resistance(Ω): 60MΩ, +/-(0.8%+2)
Capacitance(F): 60mF, +/-(1.9%+5)
Display count: 6000
True RMS: Yes
Dual display: Yes
Auto range: Yes
NCV: Yes
Diode test: Yes
Continuity: Yes
Relative mode: Yes
Max/Min: Yes
Peak hold: Yes
Low pass filter (LPF): Yes
Audible visual indication: Yes
Low battery indication: Yes, <7.5V approximately
Data hold: Yes
Analog bar graph: Yes
Auto power off: Yes, approximately 15 minutes
Flashlight: Yes
IP rating: IP65
Drop test: 2m
Safety rating: CAT III 1000V, CAT IV 600V

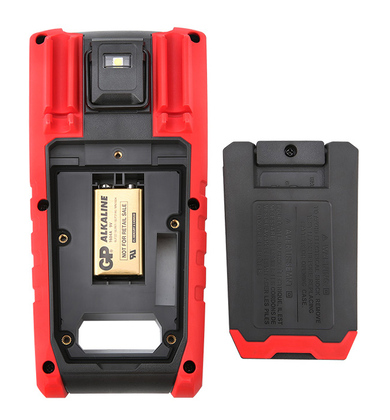

Power: 9V battery (included)
Product net weight: 485g
Product size: 195 x 95 x 58mm

Package Contents
Digital polymeter
Terminals
9V battery
Fabric carrying case
Manual
