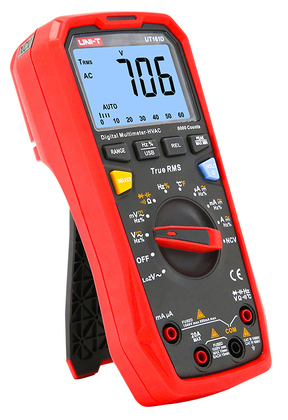

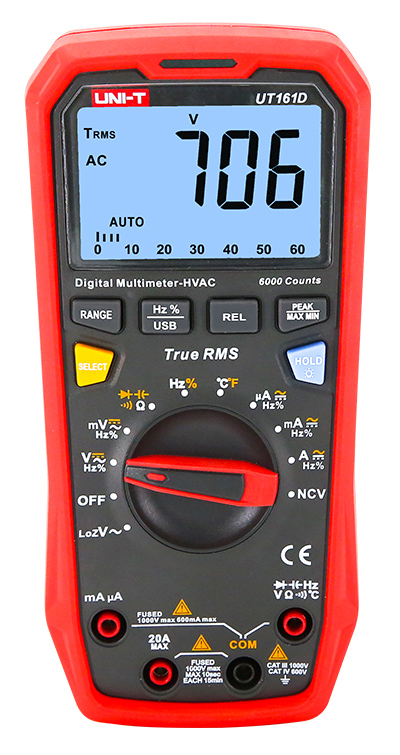

UNI-T digital multimeter UT161D, 1000V AC/DC, NCV, True RMS

UNI-T digital multimeter UT161D, 1000V AC/DC, NCV, True RMS

The UT161D is a reliable True RMS digital multimeter with a maximum display count of 6000 digits. It can measure up to 1000V AC/DC and has an audio/visual alarm. It can provide you warning especially when you measure high voltage/current and temperature.

-True RMS
-Data hold/backlight
-Max/Min/Relative mode
- USB communication
-Entry protection
- Diode/continuity test
-NCV (audio/visual alarm)
-LoZ ACV
-Peak Hold

Specifications
Safety ratings: CAT III 1000V/CAT IV 600V
AC voltage(V): 1000V ±(1%+3)
DC voltage(V): 1000V ±(0.5%+3)
AC current(A): 20A ±(1.2%+5)
DC current(A): 20A ±(1%+2)
Resistance(Ω): 60MΩ ±(1%+2)
Capacitance(F): 60mF ±(3%+5)
Frequency(Hz): 10MHz ±(0.1%+4)
Duty cycle(%): 0.1%~99.9% ±(2%+5)
Temperature(°C/°F): -40°C~1000°C ±(1%+3), -40°F~1832°F ±(1%+6)
Display count: 6000
Bandwidth (Hz): 40Hz~1kHz
LoZ ACV: Yes
Peak Hold: Yes
Analog bar: 31
Power: 4x 1.5V battery (R03)
Weight: 350g
Dimensions: 190 x 90 x 50mm

Package Contents
digital multimeter UT161D
Carrying Case
terminals
USB cable
multi-purpose socket
Temperature sensor
4x LR03 1.5V batteries
manual
