WOLF GUARD wireless motion detector PIR HW-05C

WOLF GUARD wireless motion detector PIR HW-05C

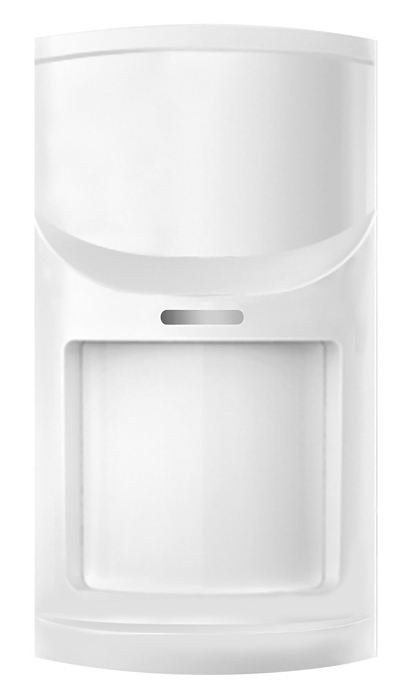

Wolf Guard wireless PIR motion detector with SMD technology. It is designed to detect human body movement by performing multiple detections to improve sensitivity and reduce false alarms.

-SMD technology
-Temperature compensation function
-Anti-strong light interference
-Multiple detection to improve sensitivity and reduce false alarm
-Low voltage detection function
-Smart power saving function to extend battery life
- Tamper alarm function, when the outer shell is open the alarm is immediately activated

Compatible with WM2T & WS-03 alarm systems.

Specifications
Sensor: Passive IR sensor
Working Voltage: DC6V (2x 3V CR123A batteries)
Static current: <26uA
Alarm current: 15mA
Working Temperature: 0°C ~ 35°C
Humidity: ?90%
Transmitting Frequency: 433±0.5MHz
Transmitting Distance: No obstacle 80~100m
Detecting Distance: 12M max
Detecting Angle: Horizontal 110°, Vertical 60°
Coding Method: IC2262

Package Contents
Wireless PIR motion detector

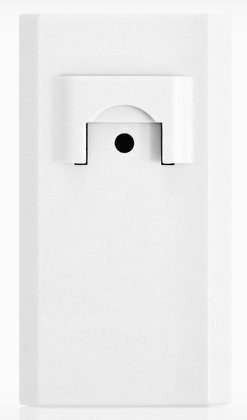

Cradle
3x Screws
2x Oops
Manual
