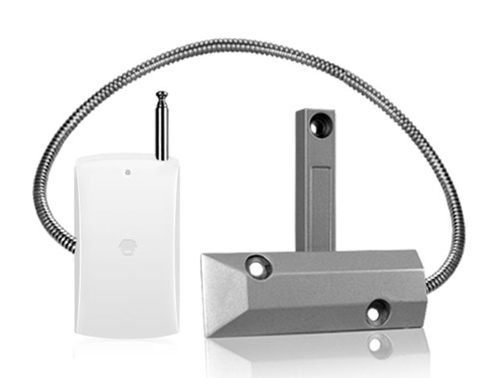

CHUANGO magnetic trap DWC-55 for roller shutters/garage doors, battery

CHUANGO magnetic trap DWC-55 for roller shutters/garage doors, battery

The DWC-55 is a magnetic trap with a metal body, ideal for mounting on roller garage doors. When the distance between the transmitter and the magnet exceeds 2cm, the transmitter sends an alarm signal to the central control panel.

-durable metal body
-ideal for roller garage doors
-battery powered

Specifications
Battery: DC 3V (AAA 1.5V LR03 x 2 PCS, included)
Static Current: < 23 uA
Alarm current: < 40 mA
Transmitting Distance: < 80m (in open area)
Radio frequency: 315MHz or 433.92MHz
Housing material: ABS plastic
Operation condition: Temperature: -10°C~+55°C, Relative humidity: < 80% (non-condensing)
Metal Magnet Dimensions: 105.5 X 15.5 X15.5 mm (L x W x H)
Metal Reed Switch Dimensions: 105.5 X 38 X 9.6 mm (L x W x H)
Transmitter Dimensions : 107 X 54 X 14.5 mm (L x W x H)
