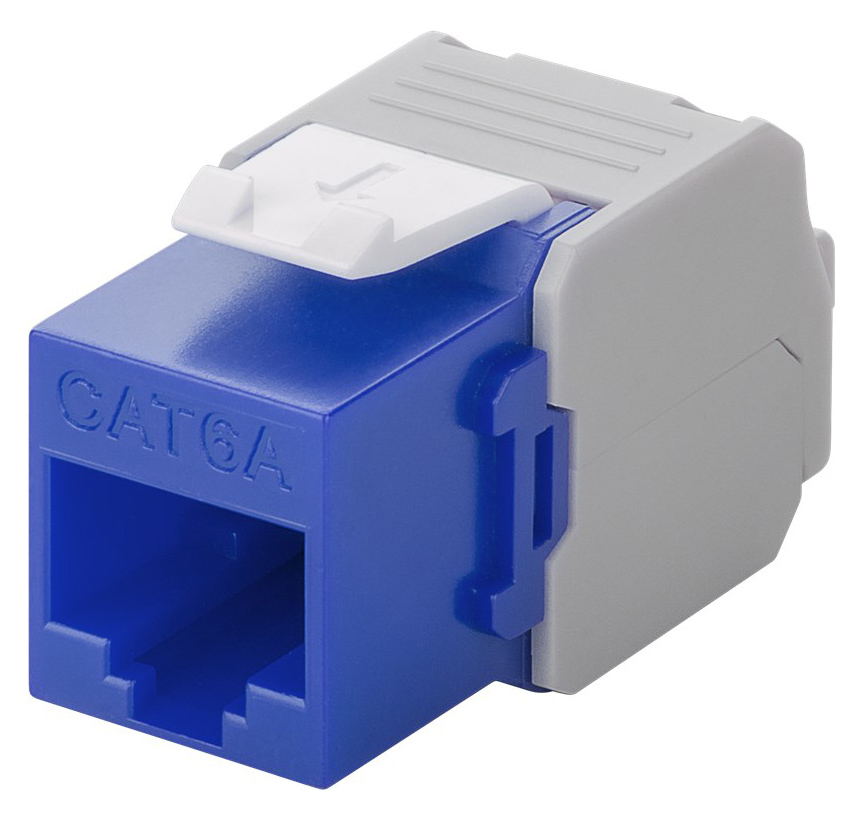

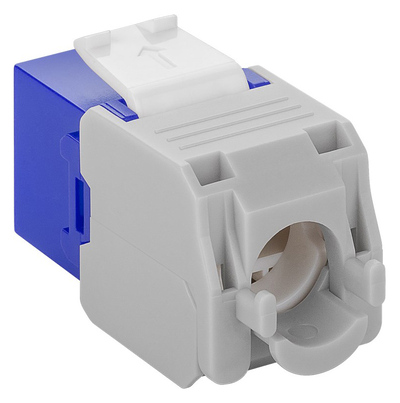

GOOBAY Keystone module RJ45 CAT 6A 90688, UTP, blue

GOOBAY Keystone module RJ45 CAT 6A 90688, UTP, blue

Goobay products are manufactured from quality materials, with the highest technical specifications, offering reliable, high-performance operation, with time resistance.

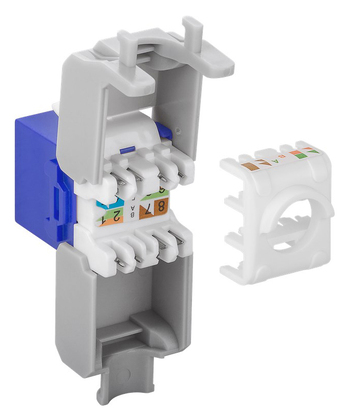

-16.5 mm width, crocodile type, for IDC connectors (toolless)
-can be mounted in Keystone panels or wall outlets
-connectors have TIA 568A/B color code
- plastic housing
-suitable for POE+ according to IEEE 802.3at
-for SOLID wires 0.48~0.65mm, AWG 22~26
-for cable outer diameter 5.0 – 9.0mm
-zinc-alloy housing

Specifications
color: blue
length: 16.5 mm
Material: PVC
Connection, shielding: yes
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connectors (toolless)
Shielding class: UTP
Specification: CAT 6A
construction form: crocodile type
max. bandwidth: 500 MHz
